Thread: Downlight connections

  1. #1
    Full Member
    Join Date
    Aug 2009
    Location
    Newcastle
    Posts
    33
    Thanks
    0
    Thanked 3 Times in 3 Posts

    Downlight connections



    What would you guys say about this connections ? Crimped together then heat-shrink over it. I want to say that if they just added another sleeve over it all to cover the single cores it would be ok ? Or what are your guys thoughts. Wanting to know as I now have to add extra down-lighters thats the same to this installation.

  2. #2
    Diamond Member
    Join Date
    Apr 2010
    Location
    planet earth
    Posts
    2,563
    Thanks
    117
    Thanked 216 Times in 190 Posts
    The person who i sue to do my COC's on occassion would fail it for 2 reason ... 1 no connector on the earth and the other exposed wiring.

    I take a piece of 25 mm PVC pipe glue pushin glands on either side and bingo you have a joint protected ... or just use a coupling with 2 pushin glands.

    I use this method on flood light with those silly short 100 mm tails ...like radiant sells at ARB for around R60.
    Comments are based on opinion...not always facts....that's why people use an alias.

  3. #3
    Full Member
    Join Date
    Aug 2009
    Location
    Newcastle
    Posts
    33
    Thanks
    0
    Thanked 3 Times in 3 Posts
    Forgot about the earth wire. Would also just crimp it with a ferrule.


    Sent from my iPhone using Tapatalk

  4. #4
    Full Member
    Join Date
    Aug 2009
    Location
    Newcastle
    Posts
    33
    Thanks
    0
    Thanked 3 Times in 3 Posts


    Some of the other wonderful workmanship I found in the roof. Nou tape just capped with screwits.

  5. #5
    Full Member
    Join Date
    Aug 2009
    Location
    Newcastle
    Posts
    33
    Thanks
    0
    Thanked 3 Times in 3 Posts


    This one was the best one ever. Wonder why there is a piece of cement under it ? I sent these to the customer and told him these needs fixing asap.

  6. #6
    Silver Member
    Join Date
    Jul 2008
    Location
    Germiston, South Africa
    Posts
    322
    Thanks
    16
    Thanked 38 Times in 35 Posts
    For the first picture a three way pvc box with three push in glands. Hopefully there is enough cable on the light fitting to reach inside of the box. That should satisfy 6.3.7 & 6.4.3 of the regulations.

    Sent from my SM-A705FN using Tapatalk
    To make a mistake is human, to learn from that mistake is knowledge and knowledge is strength.

  7. #7
    Silver Member
    Join Date
    Mar 2019
    Location
    East london
    Posts
    212
    Thanks
    7
    Thanked 30 Times in 29 Posts
    Quote Originally Posted by ians View Post
    The person who i sue to do my COC's on occassion would fail it for 2 reason ... 1 no connector on the earth and the other exposed wiring.

    I take a piece of 25 mm PVC pipe glue pushin glands on either side and bingo you have a joint protected ... or just use a coupling with 2 pushin glands.

    I use this method on flood light with those silly short 100 mm tails ...like radiant sells at ARB for around R60.

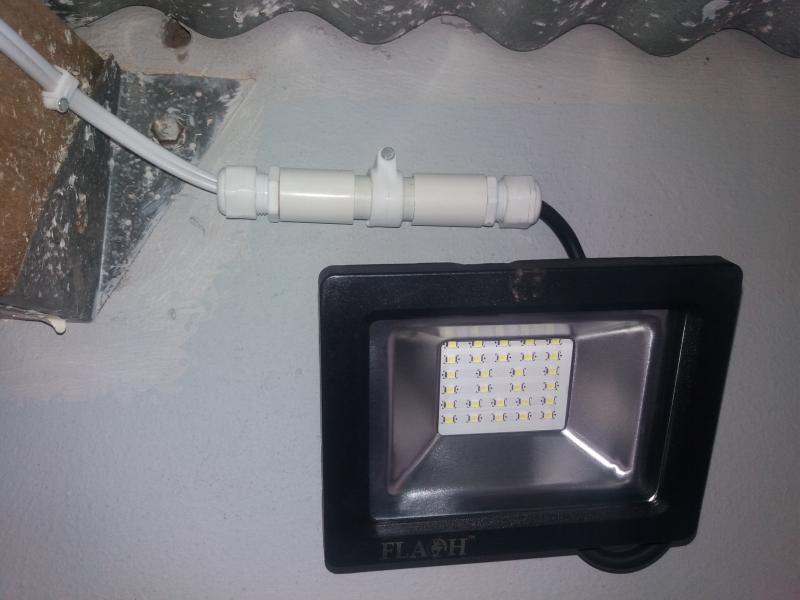

    Thanks for the tip, Ian. Tried your idea today. Simple, yet brilliant. Will use it for downlights as well in future.

    Peace out .. DerekClick image for larger version.

Name:	20201001_135620.jpg
Views:	51
Size:	44.7 KB
ID:	7971

  8. #8
    Silver Member
    Join Date
    Jul 2008
    Location
    Germiston, South Africa
    Posts
    322
    Thanks
    16
    Thanked 38 Times in 35 Posts
    Quote Originally Posted by Derlyn View Post
    Thanks for the tip, Ian. Tried your idea today. Simple, yet brilliant. Will use it for downlights as well in future.

    Peace out .. DerekClick image for larger version.

Name:	20201001_135620.jpg
Views:	51
Size:	44.7 KB
ID:	7971
    How is this legal?
    To make a mistake is human, to learn from that mistake is knowledge and knowledge is strength.

  9. #9
    New Member
    Join Date
    Jul 2018
    Location
    Brits
    Posts
    6
    Thanks
    0
    Thanked 1 Time in 1 Post
    Actually a very good idea DOES THE TWO PLUGS TURN OUT FROM EACH OTHER?
    the lights cable is very short everybody is complain about it.

  10. #10
    Silver Member
    Join Date
    Jul 2008
    Location
    Germiston, South Africa
    Posts
    322
    Thanks
    16
    Thanked 38 Times in 35 Posts
    Quote Originally Posted by Lindley View Post
    Actually a very good idea DOES THE TWO PLUGS TURN OUT FROM EACH OTHER?
    the lights cable is very short everybody is complain about it.
    Have a closer look at what it is

    Sent from my SM-A705FN using Tapatalk
    To make a mistake is human, to learn from that mistake is knowledge and knowledge is strength.
