    [Article] Phase converters

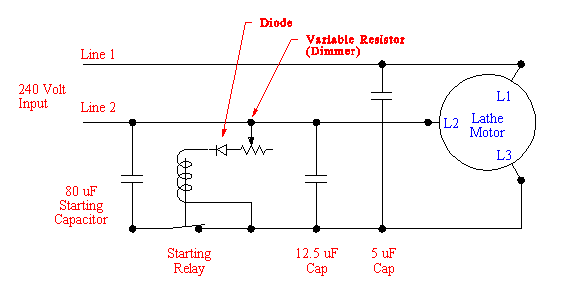

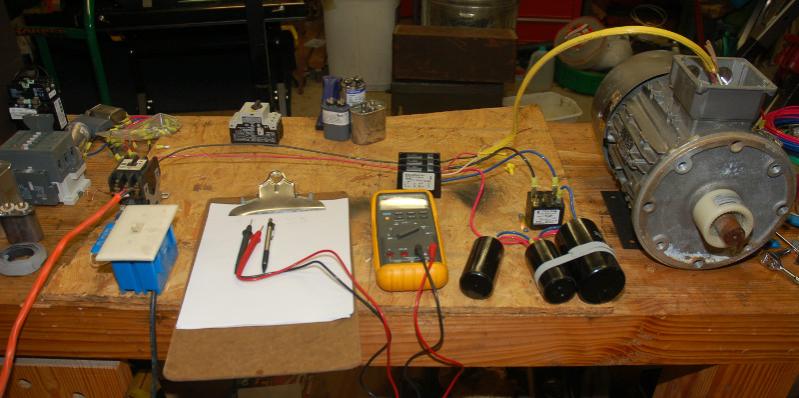

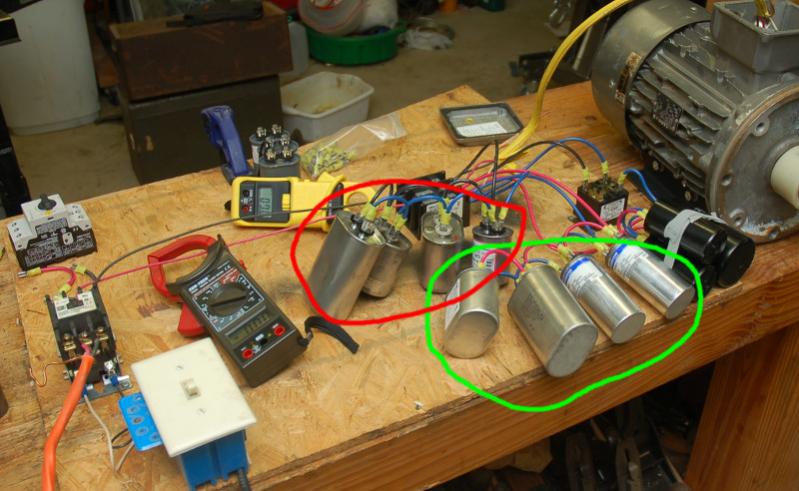

    2 types of phase converters static and rotary. Busy building one static converter to test on 5hp 3 phase delta motor. Diagram and a some pics.
