electrical pictures

[murdock]

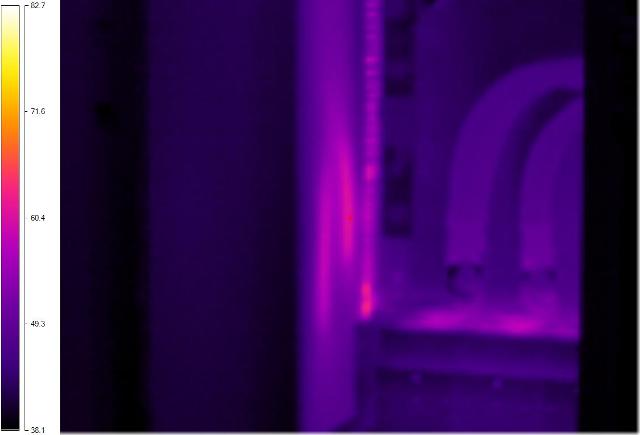

this pic is wiring inside trunking which are overhating.

[murdock]

an unbalanced load

[murdock]

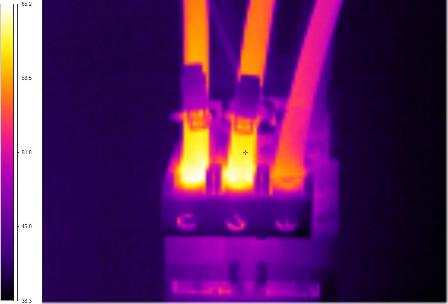

checking for loose connections on terminals.

[murdock]

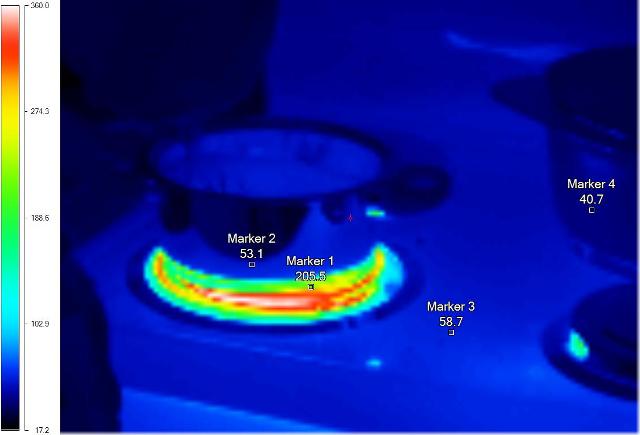

this was one of the first images i took when i was learning about emmisivity and reflective temperature

[murdock]

commissioning a machine making sure the temperature on the various components are set correctly

[murdock]

checking terminals

[murdock]

commisioning machine checking even temp. spread on the end product.

[murdock]

this was the first test run product ooops

[murdock]

an infrared camera is not an x-ray machine...you cannot see through walls only the temperature of the wall...i ragged my neighbour that i was gona keep an eye on him and his activities inside his house

or an example is the trunking pic were the temp inside the trunking is hotter than the outside so the trunking heats up to the same temp as the wires inside making it possible to see there is a problem.

[Dave A]

That really is a useful tool, Murdock.

[murdock]

these are just a few of the applications i have used it for...i have also used it to check were my cooling problem was in my bakkie...game view...finding animals in a game reserve...checked a motor vehicle which had a problem with one cylinder not firing properly...the oppotunities are only restricted by my imagination.

[murdock]

hyena in the game reserve...it was pitch black you couldnt see your hand in front of your face
