Thread: socket-outlet question

  1. #1
    Junior Member
    Join Date
    Jun 2016
    Location
    Port Elizabeth
    Posts
    23
    Thanks
    0
    Thanked 1 Time in 1 Post

    socket-outlet question

    Hi all
    What I would like to know if a socket-outlet may be right above (10cm) the built-in stove plates ?
    Thanks

  2. #2
    Diamond Member AndyD's Avatar
    Join Date
    Jan 2010
    Location
    Cape Town
    Posts
    4,403
    Thanks
    513
    Thanked 854 Times in 687 Posts
    Can you attach a photo?
    It's a bit late for me to go hunting for the regs now but from memory I think it's specifically not recommend it but I don't think it's forbidden so it's something that would need to be decided by a person competant to do so. Maybe one of our regular sparkies who work domestic will give a better opinion.
    _______________________________________________
    I am special and so is Vanash.
    _______________________________________________

  3. #3
    Full Member MullerR's Avatar
    Join Date
    Jan 2016
    Location
    Lady Grey
    Posts
    44
    Thanks
    3
    Thanked 6 Times in 5 Posts
    Accorrding to the reg. 6.15.6.1: "A socket-outlet that is exposed to the wheater (or to the condensation, dripping, splashing or accumulation of water) shall have a rating of at least IP44 in accordance with SANS60529/IEC60529. The rating applies whether a plug is in or out.

  4. #4
    Junior Member
    Join Date
    Jun 2016
    Location
    Port Elizabeth
    Posts
    23
    Thanks
    0
    Thanked 1 Time in 1 Post

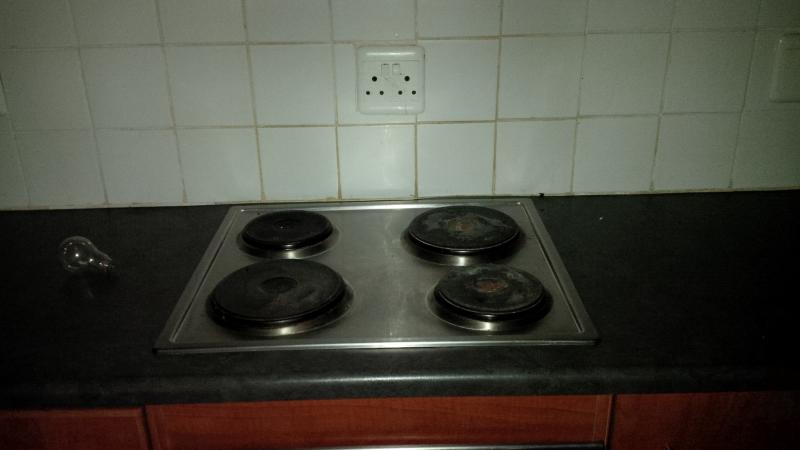

    This is the socket-outlet. Thanks guys. I'll disconnect it.
    Attached Thumbnails Attached Thumbnails Click image for larger version.

Name:	IMG_20160818_071751.jpg
Views:	31
Size:	28.3 KB
ID:	6423

  5. #5
    Bronze Member ACEsterhuizen's Avatar
    Join Date
    Mar 2012
    Location
    South Africa
    Posts
    130
    Thanks
    79
    Thanked 18 Times in 14 Posts
    If the (cbi or any other non-metallic) IP44 socket outlet (electrical equipment) is mounted (positioned) so that:

    5.1.2 Temperature

    5.1.2.1 Unless otherwise permitted by an applicable standard (see 4.3
    and table 4.2), electrical equipment shall be so designed, positioned and
    protected that accessible parts under normal operating conditions do not
    reach a temperature (safe touch temperature) that exceeds

    a) 70C in the case of metallic parts, and

    b) 90C in the case of non-metallic parts.


    So, if the stove plate are on, with a pot standing on the plate cooking something, (normal operating condition) the non-metallic socket outlet must not exceed a temperature of 90 deg Cel. That you can measure with Infra Red Thermometer. Metal socket outlets not more than 70C. If the plate is directly under the plug i will almost guarantee you that the plastic cover will reach more than 90C and melt (eventually). But you have to measure it to be sure. You must have the Degree Celsius.

    So me personally, I will not sign a CoC in that case, (if the temps exceeds the regulations) I will remove the electrical equipment from that position. But, if the temps stays within the limits according to regulation, and there is no other regs issues, i will sign it gladly.

    ps. The normal CBI pvc plastic plugs are all IP44.
    Last edited by ACEsterhuizen; 18-Aug-16 at 01:36 PM. Reason: more info

  6. #6
    Diamond Member AndyD's Avatar
    Join Date
    Jan 2010
    Location
    Cape Town
    Posts
    4,403
    Thanks
    513
    Thanked 854 Times in 687 Posts
    Yeah, I've seen a few in the past that are a debatable for environmental reasons but the one in the photo would fall fair and square in the unsafe category in my opinion. Temperature of the actual socket aside, any appliance plugged into it would leave a trailing cable in contact with one of the hob elements or extremely close. I'd remove/relocate that one.
    _______________________________________________
    I am special and so is Vanash.
    _______________________________________________

  7. #7
    Full Member MullerR's Avatar
    Join Date
    Jan 2016
    Location
    Lady Grey
    Posts
    44
    Thanks
    3
    Thanked 6 Times in 5 Posts
    Not a very bright place to install a socket outlet in the first place. Maybe the stove was installed afterwards, but still. I will also relocate the sockey outlet to a more safe location.

  8. #8
    Junior Member markthespark's Avatar
    Join Date
    Jul 2015
    Location
    Cape Town
    Posts
    22
    Thanks
    3
    Thanked 1 Time in 1 Post
    I would also definitely disconnect it and install a blank coverplate. If it is last in line I would remove the wiring to prevent re-connection!!

  9. #9
    Platinum Member SilverNodashi's Avatar
    Join Date
    May 2007
    Location
    Johannesburg, South Africa
    Posts
    1,172
    Thanks
    11
    Thanked 188 Times in 136 Posts
    Sorry to hijack this post, but I need to ask a question related to the @OP.
    Am I allowed to connect a wall socket to existing stove wiring, if / when the stove is removed? The purpose of the plug would be to "feed" some induction hot plates, and a new cupboard will be built where the stove was.

  10. #10
    Site Caretaker Dave A's Avatar
    Join Date
    May 2006
    Location
    Durban, South Africa
    Posts
    20,979
    Thanks
    3,055
    Thanked 2,462 Times in 2,067 Posts
    Blog Entries
    12
    Quote Originally Posted by SilverNodashi View Post
    Am I allowed to connect a wall socket to existing stove wiring, if / when the stove is removed?
    Essentially you'd be converting the circuit to a socket outlet only circuit. Meet the requirements for a socket outlet circuit and you'll be good to go.
    The trouble with opportunity is it normally comes dressed up as work.
