    Standard test finger

    Does anyone know what the dimensions are of the standard test finger.

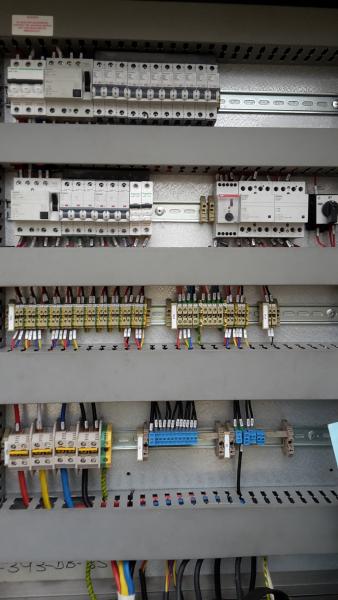

    I currently have a stainless steel Attachment 5904industrial DB which has C/B's, terminals and E/L's mounted on DIN rail. The common bus-bar on top of the C/B's are all of the insulated type. All the internal wiring is through narrow slot PVC trunking. There is a solid door on the front which can be opened without the use of panel key.

    I personally feel that the screw connections at the DIN C/B's and terminals are quite recessed and that it would take quite an effort to be able to touch the terminals and receive a shock hence the question on the standard test finger. I am reluctant to cover all the connection point with perspex or similar.

    Any thoughts on this.
    Attached Thumbnails Attached Thumbnails Click image for larger version.

Name:	DB.jpg
Views:	228
Size:	35.5 KB
ID:	5905

  2. #2
    Diamond Member AndyD's Avatar
    Join Date
    Jan 2010
    Location
    Cape Town
    Posts
    4,403
    Thanks
    513
    Thanked 854 Times in 687 Posts
    Doesn't the door require a triangular or 6mm square key to open it? If so then the panel requires a tool to enter so the effective IP rating of all the internal connections and components follows the IP rating of the panel itself. I wouldn't ever attempt to get all the connections and components in a panel or DB to pass the finger test. You could just padlock the door.
    _______________________________________________
    I am special and so is Vanash.
    _______________________________________________

  3. #3
    Full Member
    Join Date
    Oct 2012
    Location
    Durban
    Posts
    31
    Thanks
    0
    Thanked 5 Times in 4 Posts
    That would be the easiest but the main switch is mounted inside the panel and therefore access cannot be restricted to the use of a tool in case of emergency.

  4. #4
    Diamond Member adrianh's Avatar
    Join Date
    Mar 2010
    Location
    Cape Town
    Posts
    5,089
    Thanks
    336
    Thanked 808 Times in 642 Posts
    Could you please tell us what a "standard test finger" is?
    How easily someone is offended is directly proportional to how stupid they are.
    ~GS Elevator

  5. #5
    Site Caretaker Dave A's Avatar
    Join Date
    May 2006
    Location
    Durban, South Africa
    Posts
    20,980
    Thanks
    3,055
    Thanked 2,462 Times in 2,067 Posts
    Blog Entries
    12
    I've attached a scan of the diagram with dimensions per IEC 60529.

    I see you can buy them here.

    And for Adrian, this is roughly what it should look like.

    Click image for larger version.

Name:	std-test-finger-image.JPG
Views:	36
Size:	22.6 KB
ID:	5908
    Attached Files Attached Files
    The trouble with opportunity is it normally comes dressed up as work.

  6. Thanks given for this post:

    Justloadit (18-Sep-15)

  7. #6
    Diamond Member adrianh's Avatar
    Join Date
    Mar 2010
    Location
    Cape Town
    Posts
    5,089
    Thanks
    336
    Thanked 808 Times in 642 Posts
    What is it used for and how does it work?
    How easily someone is offended is directly proportional to how stupid they are.
    ~GS Elevator

  8. #7
    Site Caretaker Dave A's Avatar
    Join Date
    May 2006
    Location
    Durban, South Africa
    Posts
    20,980
    Thanks
    3,055
    Thanked 2,462 Times in 2,067 Posts
    Blog Entries
    12
    It's a tool to test for the "finger safe " level of physical ingress protection. It's to do with the IP rating of enclosures.
    The trouble with opportunity is it normally comes dressed up as work.

  9. #8
    Diamond Member AndyD's Avatar
    Join Date
    Jan 2010
    Location
    Cape Town
    Posts
    4,403
    Thanks
    513
    Thanked 854 Times in 687 Posts
    Lol, the finger test is nowhere as exciting as it sounds I'm afraid Adrain

    Quote Originally Posted by RegElec View Post
    That would be the easiest but the main switch is mounted inside the panel and therefore access cannot be restricted to the use of a tool in case of emergency.
    Install a DIN mounted isolator switch and a door mounted handle and extension kit....then padlock the door.

    Click image for larger version.

Name:	111.jpg
Views:	107
Size:	30.3 KB
ID:	5912
    _______________________________________________
    I am special and so is Vanash.
    _______________________________________________

  10. Thanks given for this post:

    adrianh (21-Sep-15)

  11. #9
    New Member
    Join Date
    Oct 2015
    Location
    Cape Town
    Posts
    6
    Thanks
    0
    Thanked 0 Times in 0 Posts
    Door mount can be a problem if the panel is more than 400mm deep, think the cheapest might be to move the main isolator to the sides or directly onto the door and the padlock him ofcourse.
