Thread: Need help with 'floppy' motorbike mirror

  1. #1
    Gold Member Houses4Rent's Avatar
    Join Date
    Mar 2014
    Location
    Cape Town
    Posts
    761
    Thanks
    7
    Thanked 55 Times in 51 Posts

    Need help with 'floppy' motorbike mirror

    My scooter mirror is dropping all the time at the ball type hinge to adjust it in any directtion. Its basically worn out I guess as its friction based. There is nothing to tighten. I am thinking of silly ideas like insulating tape, trying prestik or glue to keep it in a (even fixed if need be) position. Or a more elegant solution like a spray with some grain in it which increases friction. Is there something like that? Does anybody have a better idea? The mirror is perfectly fine otherwise and not ready to be scrapped.
    Houses4Rent
    "We treat your investment as we treat our own"
    marc@houses4rent.co.za www.houses4rent.co.za
    083-3115551
    Global Residential Property Investor / Specialized Letting Agent & Property Manager

  2. #2
    Platinum Member pmbguy's Avatar
    Join Date
    Apr 2013
    Location
    PMB
    Posts
    2,094
    Thanks
    310
    Thanked 254 Times in 230 Posts
    Insert a thin piece of rubber in the socket cavity so it grips but you can still adjust it. I did this to a shower head and it worked like a charm
    It is not the strongest of the species that survive, nor the most intelligent, but the one most responsive to change. Charles Darwin

  3. #3
    Gold Member Houses4Rent's Avatar
    Join Date
    Mar 2014
    Location
    Cape Town
    Posts
    761
    Thanks
    7
    Thanked 55 Times in 51 Posts
    Sound slike a good idea, but I cannot get it apart. If I force it I fear something is going to snap. Its die cast alu I think. It will have to be ultra thin rubber to fit in there anyway, but I am sure I would find something suitable IF I get it apart that is.
    Houses4Rent
    "We treat your investment as we treat our own"
    marc@houses4rent.co.za www.houses4rent.co.za
    083-3115551
    Global Residential Property Investor / Specialized Letting Agent & Property Manager

  4. #4
    Diamond Member HR Solutions's Avatar
    Join Date
    Mar 2013
    Location
    Capetown/Jhb
    Posts
    3,327
    Thanks
    113
    Thanked 214 Times in 202 Posts
    What about squeezing some Locktite into the socket ? Just make sure you get the mirror in the right place and it will never move again.
    HR Solutions - Recruitment Specialists - Johannesburg & Capetown Tel: 0861-045-263
    Upload your CV @ www.2hrs.co.za

    Biometric Fingerprint Criminal Checks (AFIS)

  5. Thanks given for this post:

    desA (03-Jul-14)

  6. #5
    Gold Member Houses4Rent's Avatar
    Join Date
    Mar 2014
    Location
    Cape Town
    Posts
    761
    Thanks
    7
    Thanked 55 Times in 51 Posts
    I mentioned glue myself, but as I said I am looking for a more elegant solution (less permanent) if that is possible at all.
    Houses4Rent
    "We treat your investment as we treat our own"
    marc@houses4rent.co.za www.houses4rent.co.za
    083-3115551
    Global Residential Property Investor / Specialized Letting Agent & Property Manager

  7. #6
    Platinum Member pmbguy's Avatar
    Join Date
    Apr 2013
    Location
    PMB
    Posts
    2,094
    Thanks
    310
    Thanked 254 Times in 230 Posts
    I think you should pull it out. If it does not break then you can insert the rubber (or a small blob of silicone in the back of the socket hole, producing enough forward pressure to make it stiff - yet adjustable). If it does break when you trying to pull it out then you glue it in a set position, but don't glue it in a set position without trying to pull it out first.


    There is another way if you really don't want to pull it out - glue it with something like Alcolin Clear Adhesive (Or similar) in a set position. Then if you need to adjust it later you can pull the glue off with relative ease and re-glue it in a new set position
    It is not the strongest of the species that survive, nor the most intelligent, but the one most responsive to change. Charles Darwin

  8. #7
    Platinum Member pmbguy's Avatar
    Join Date
    Apr 2013
    Location
    PMB
    Posts
    2,094
    Thanks
    310
    Thanked 254 Times in 230 Posts
    Its difficult without a photo to look at, but you could drill a small whole in the socket through which you can drive a screw that puts pressure on the ball. You can tighten the screw to set and release it to adjust it.
    It is not the strongest of the species that survive, nor the most intelligent, but the one most responsive to change. Charles Darwin

  9. #8
    Gold Member Houses4Rent's Avatar
    Join Date
    Mar 2014
    Location
    Cape Town
    Posts
    761
    Thanks
    7
    Thanked 55 Times in 51 Posts
    All good ideas mbguy, thanks.

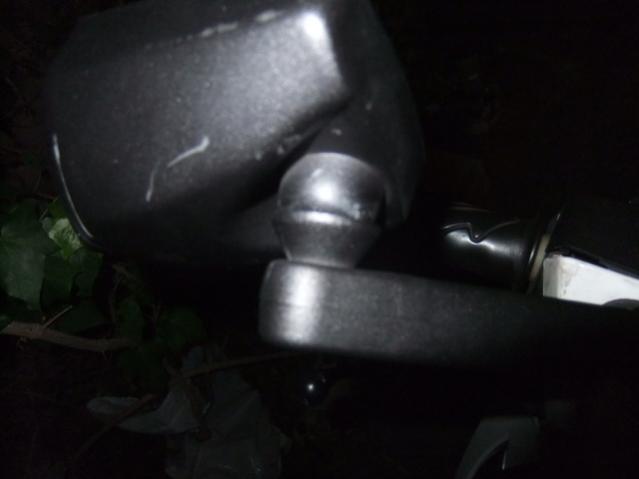

    Here is a picture too
    Attached Thumbnails Attached Thumbnails Click image for larger version.

Name:	DSCF9496.jpg
Views:	46
Size:	17.9 KB
ID:	4810
    Houses4Rent
    "We treat your investment as we treat our own"
    marc@houses4rent.co.za www.houses4rent.co.za
    083-3115551
    Global Residential Property Investor / Specialized Letting Agent & Property Manager

  10. #9
    Platinum Member pmbguy's Avatar
    Join Date
    Apr 2013
    Location
    PMB
    Posts
    2,094
    Thanks
    310
    Thanked 254 Times in 230 Posts
    Drill 4 holes in the socket while attached, the wholes must go right through into the ball. Force silicone into the wholes. The shavings created from the drilling in the narrow space between the socket and the ball, with the silicone, should create enough friction to make it stiff-adjustable
    It is not the strongest of the species that survive, nor the most intelligent, but the one most responsive to change. Charles Darwin

  11. #10
    Diamond Member AndyD's Avatar
    Join Date
    Jan 2010
    Location
    Cape Town
    Posts
    4,401
    Thanks
    513
    Thanked 854 Times in 687 Posts
    Try to carefully pull the glass of the mirror out and you'll probably find there's a nut or retaining screw inside behind the glass. Important things to remember; 1. If you lever the glass use something plastic, not a screwdriver. 2. No matter how hard you rub shit doesn't shine. If the mirror is cheap and nasty and poorly designed it"s doubtful it will ever work properly whatever you do to it.
    _______________________________________________
    I am special and so is Vanash.
    _______________________________________________
