    Andy's archaic analog electrical test equipment

    Every year or two I drag out my old testers for a clean-up.

    Thought I'd share a few of them with you.

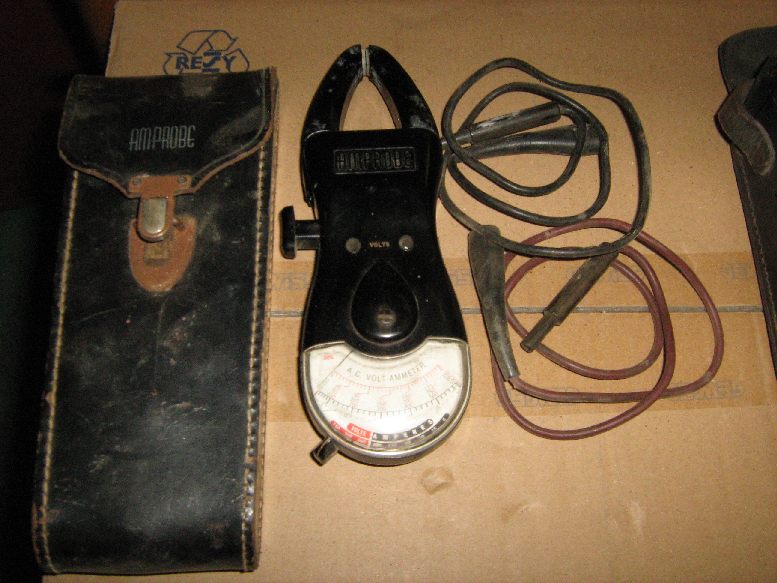

    This is one of my first clamp meters. It still works fine.
    Click image for larger version.

Name:	2.jpg
Views:	39
Size:	82.1 KB
ID:	3074

    This mega tester is over 20 years old and still going strong.
    Click image for larger version.

Name:	4.jpg
Views:	36
Size:	83.0 KB
ID:	3075

    And this one is even older and still passed calibration earlier this year....
    Click image for larger version.

Name:	7.jpg
Views:	20
Size:	58.4 KB
ID:	3076

    This is my RPM tester for motors. It nearly didn't get allowed on a site recently, the H&S brigade made me fill out a full 8 page risk assessment just for this tester.
    Click image for larger version.

Name:	9.jpg
Views:	32
Size:	67.2 KB
ID:	3077
